Info
SKU:GSC-3000-12-F-300-3600
,Condition:
,Availability:
,Weight:
Info
- SKU:
- GSC-3000-12-F-300-3600
- UPC:
- MPN:
- Condition:
- New
- Availability:
- Contact us for Pricing & Availability.
- Weight:
- 12.6378 LBS
Specifications
Type,
Material,
Finish,
Diameter,
Size,
Specifications
- Type:
- Type F RF Gasket
- Material:
- Compressed Non-Asbestos, Blue
- Finish:
- Aramid Fiber & NBR Binder
- Diameter:
- 36.00 (36 Pipe Size)
- Size:
- Class 300#
Description

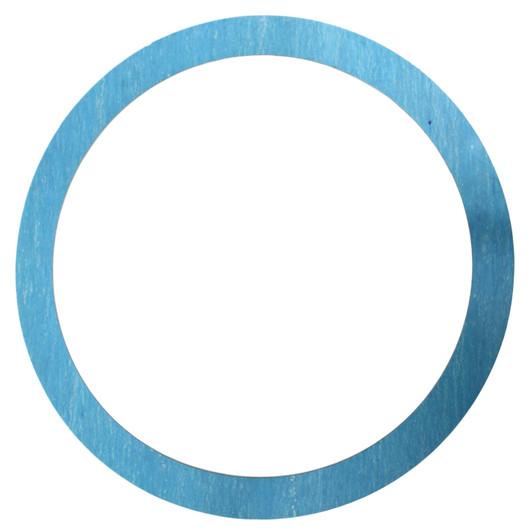

36" 300# Type F Ring Gasket Garlock Blue-Gard 3000 1/8" (36 inch Inner Diameter x 44 inch Outer Diameter)
Garlock Blue-Gard 3000 -
Made of: Aramid fibers with a Nitrile (NBR) Binder
Suitable for use with: Water, aliphatic hydrocarbons, oils and gasoline
Technical Data
Color: Blue
Temperature: Continuous operating range: up to 400¬°F (205¬°C) | Maximum Spike: 700¬°F (371¬°C) | Minimum: -100¬°F (-73¬°C)
Tensile Strength: Across grain 2150 psi (15 N/mm2)
Density: 100 lbs/ft3 (1.6g/cm3
Applicable Fluids: Water, aliphatic hydrocarbons, oils and gasoline
Pressue: Max 1000
PxTMax: PSIx¬°F (Bar X¬°C): 1/32 & 1/16 - 350,000 (12,000) | 1/8 - 250,000 (8,600)
Compressibility: 8%
Recovery: 50%
Creep Relaxation: 21%
Dielectric Properties volts/mil. (96 hours at 100% Relative Humidity): 1/16" - 271 | 1/8" - 142
M/Y Value
Thickness [in]: 1/16 | Gasket Factor (m): 4.2 | Min Design Seating Stress (y): 3050 PSI [21.0 N/mm2]
Thickness [in]: 1/8 | Gasket Factor (m): 5.2 | Min Design Seating Stress (y): 4400 PSI [30.3 N/mm2]
